Rack X Hydro cooling container
Rack X Hydro Cooling Container is a highly efficient rack-side liquid cooling device that dissipates concentrated heat from high-density rack-mounted computing hardware (e.g., servers, GPU clusters, computing rigs) to ambient air through direct rack water circulation and integrated heat exchange assemblies, it cuts air mixing energy loss, delivers ultra-low PUE, and is widely adopted in compact, high-power continuous operation data center environments.
Rack X Hydro Cooling Container is a highly efficient rack-side liquid cooling device that dissipates concentrated heat from high-density rack-mounted computing hardware (e.g., servers, GPU clusters, computing rigs) to ambient air through direct rack water circulation and integrated heat exchange assemblies, it cuts air mixing energy loss, delivers ultra-low PUE, and is widely adopted in compact, high-power continuous operation data center environments.
Previous: Tower-Inside Immersion cooling container
Next: Immersion Cooling System
Product Details
ㅤProduct Parametersㅤ
ㅤProduct Descriptionㅤ
ㅤProduct Featuresㅤ
Specication
|
Dimensions(W x D x H) |
5728mm x 1100mm x 2520mm |
|
Gross Weight |
2200kg Approximately 13tons |
|
Miner Capacity |
Rack1=21pcs 2U Rack6=126pcs 2U |
|
Input Voltage |
380V@50Hz,415V@60Hz |
|
Power rating (kW) |
Rack1=168kw,Rack6=1000kw,8kw/postion |
|
Heat dissipation options |
Dry-cooler / Cooling tower / Hybrid cooling system / Heat recovery system |
|
Cooling Medium |
Softened water /Antifreeze fluid |
|
Max Oil Temp (℃) |
In 50℃ Out 60℃ |
|
Electrical Code |
UL、CE、CSA (Alternative) |
|
Working temperature |
-25~40℃ |
|
Monitoring content |
Industrial PC, Temp & Humidity Monitoring through Web/APP, Pressure sensor, water sensor, smoke alarm, Error Light, Smart PDU, Multifunctional Power Meter |
|
Delivery Date |
45 working days |
Product Sample
Specication
|
Dimensions(W x D x H) |
5728mm x 1100mm x 2520mm |
|
Gross Weight |
2200kg Approximately 13tons |
|
Miner Capacity |
Rack1=21pcs 2U Rack6=126pcs 2U |
|
Input Voltage |
380V@50Hz,415V@60Hz |
|
Power rating (kW) |
Rack1=168kw,Rack6=1000kw,8kw/postion |
|
Heat dissipation options |
Dry-cooler / Cooling tower / Hybrid cooling system / Heat recovery system |
|
Cooling Medium |
Softened water /Antifreeze fluid |
|
Max Oil Temp (℃) |
In 50℃ Out 60℃ |
|
Electrical Code |
UL、CE、CSA (Alternative) |
|
Working temperature |
-25~40℃ |
|
Monitoring content |
Industrial PC, Temp & Humidity Monitoring through Web/APP, Pressure sensor, water sensor, smoke alarm, Error Light, Smart PDU, Multifunctional Power Meter |
|
Delivery Date |
45 working days |
Product Sample
Previous: Tower-Inside Immersion cooling container
Next: Immersion Cooling System
Related Products
Immersion cooling container-

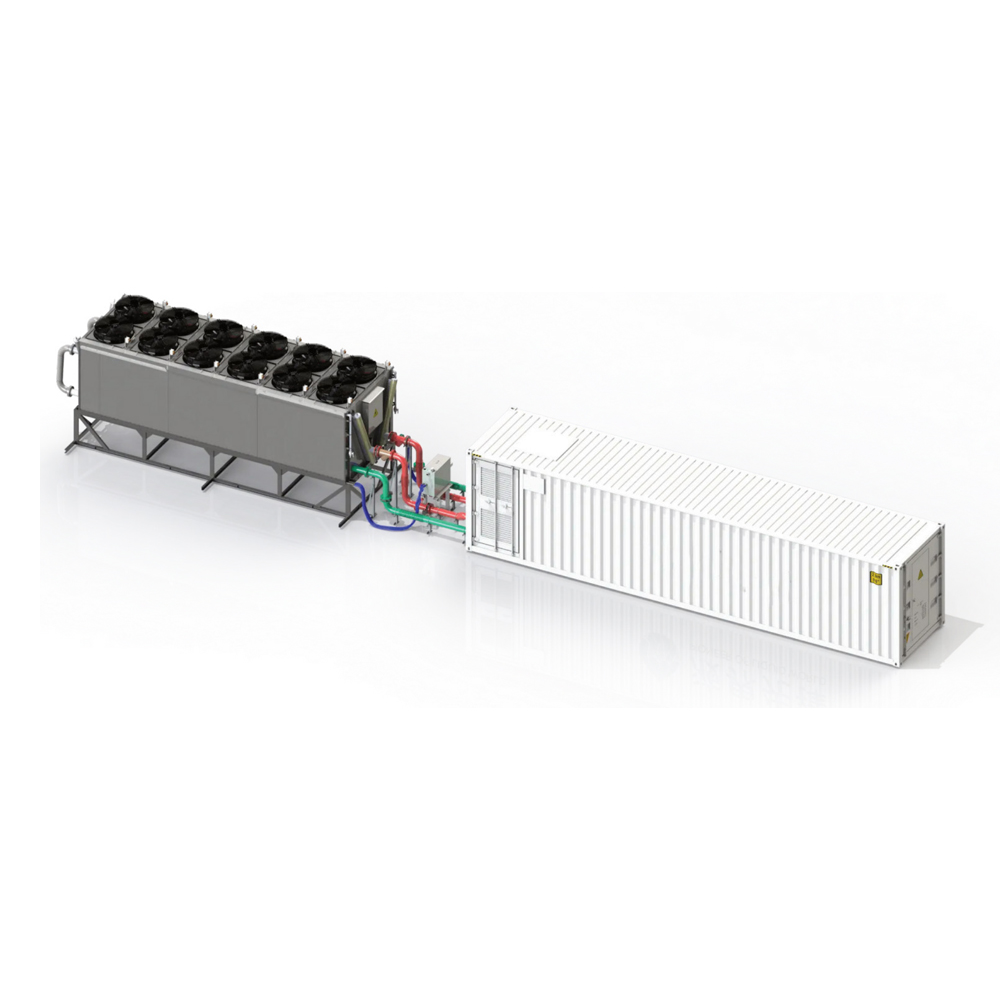

Immersion cooling container
● The tank area is enlarged to support various Antminers such as S21, S21 XP, S21 Pro, S21xp Imm, and DG1+. It is insulated and equipped with air conditioning for operator comfort. ● The dry cooler is separate from the 40-foot container and can be in...
Bitcoin Mining Container-

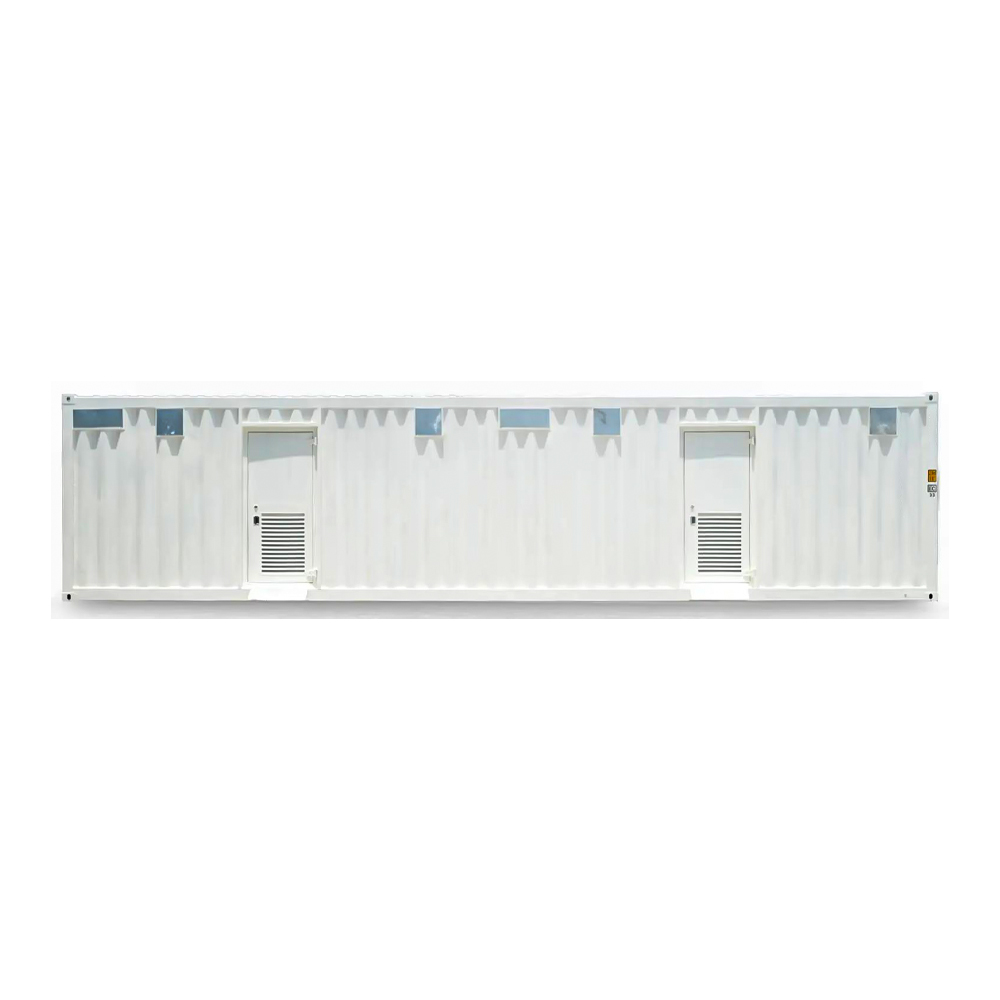

Bitcoin Mining Container
The Bitcoin Mining Container is an integrated mining cooling unit that transfers massive waste heat from Antminers, GPU rigs and high-density mining hardware to ambient air through sealed immersion circulation and matched dry cooler assemblies. It cu...
Hydro cooling container-

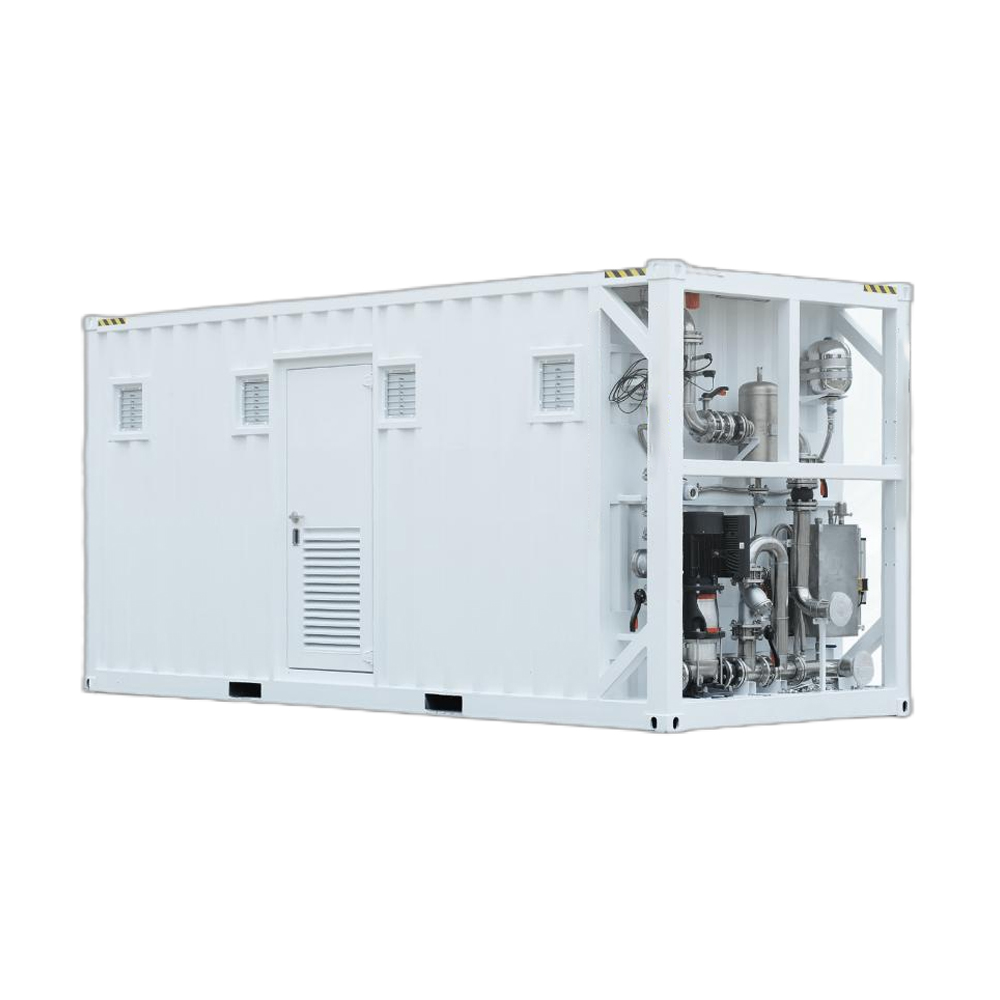

Hydro cooling container
The Hydro Cooling Container is a high-efficiency integrated cooling unit that transfers massive waste heat from mining rigs, GPU clusters and high-density computing hardware to ambient air via closed hydro immersion circulation and matched dry cooler...
Cabinet Cooling System-

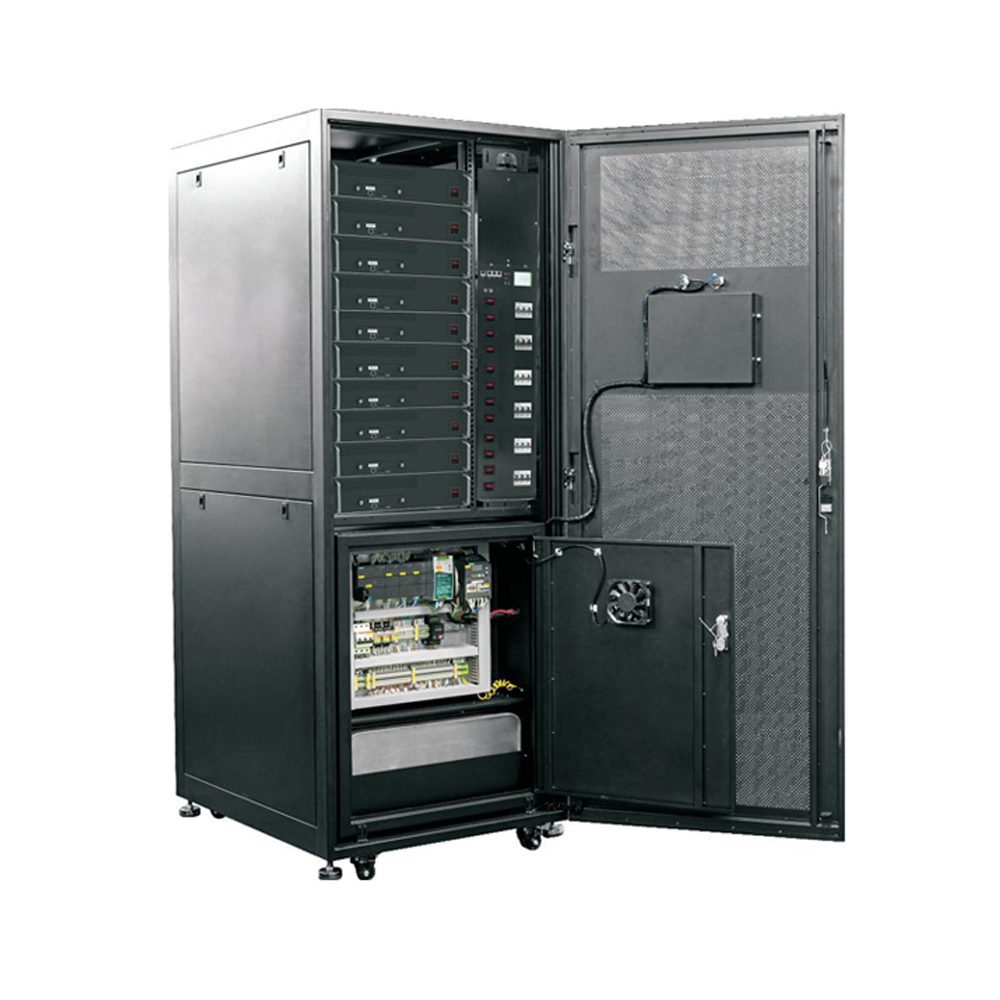

Cabinet Cooling System
The Cabinet Cooling System is a high-efficiency thermal control device that transfers accumulated heat from electrical and electronic components inside enclosures to outside ambient air via internal heat exchangers and axial fans. It avoids the risk ...
W40 Hydro cooling container -

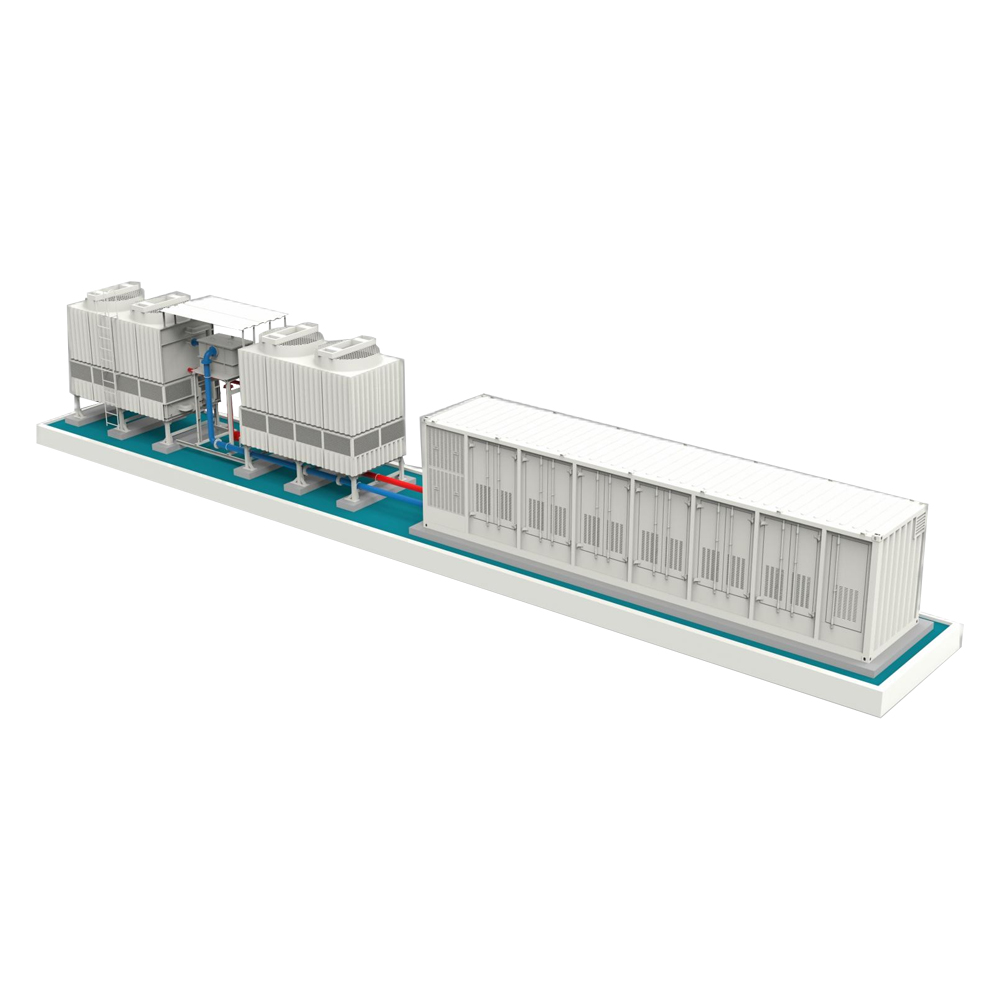

W40 Hydro cooling container
W40 Hydro Cooling Container is a highly efficient liquid cooling device that dissipates intensive heat from high-density computing hardware (e.g., servers, GPU clusters, mining equipment) to ambient air through closed hydro circulation and integrated...
Tower-Inside Immersion cooling container-

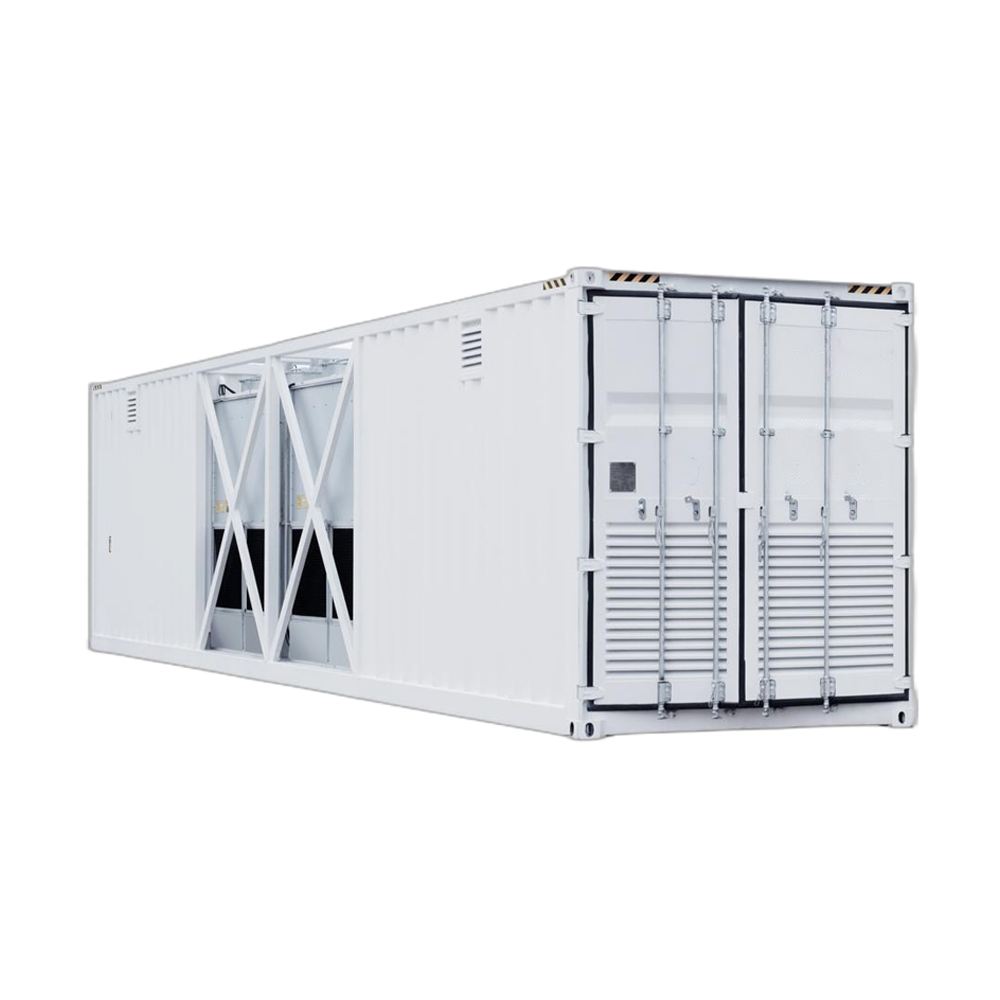

Tower-Inside Immersion cooling container
Tower-Inside Immersion Cooling Container is a highly efficient integrated cooling device that draws massive heat from high-density computing hardware (e.g., servers, GPU clusters, mining rigs) to ambient air via built-in cooling tower circulation and...
Immersion Cooling System-

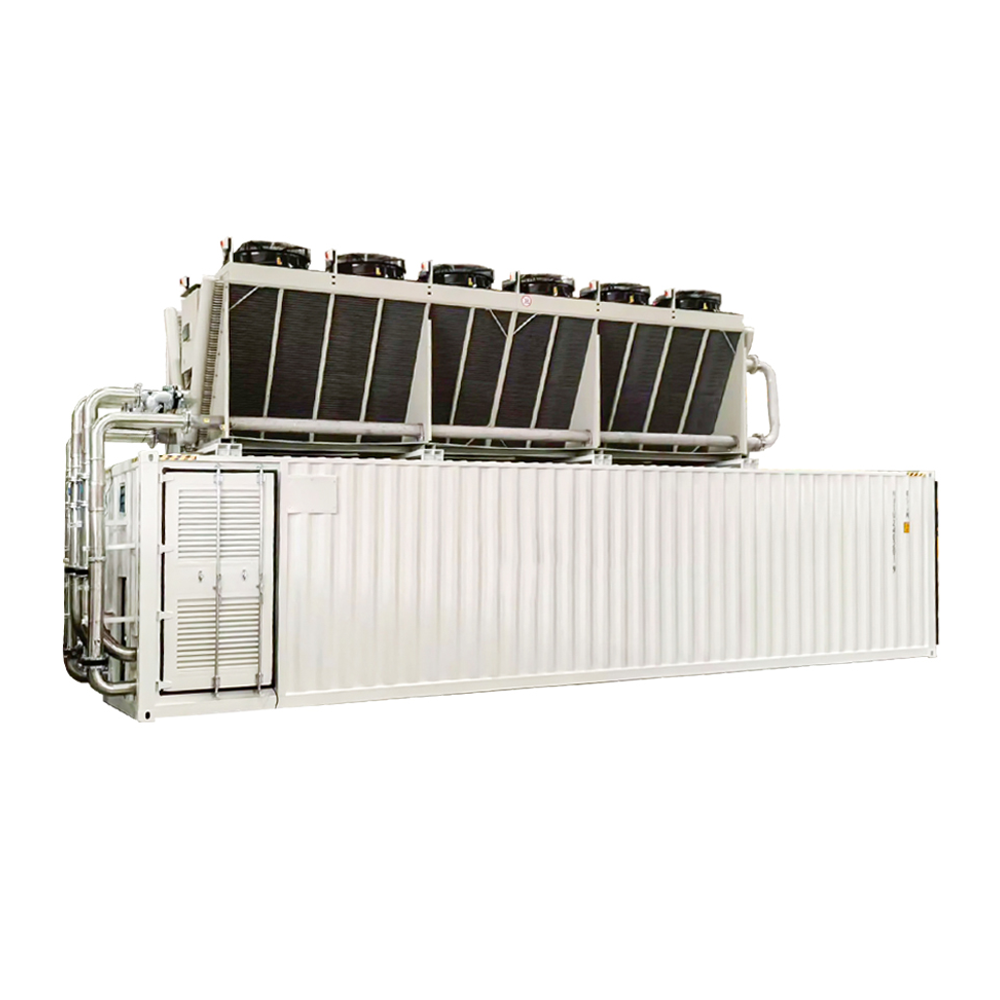

Immersion Cooling System
● The tank area is enlarged to support various Antminers such as S21, S21 XP, S21 Pro, S21xp Imm, and DG1+. It is insulated and equipped with air conditioning for operator comfort. ● The dry cooler is separate from the 40-foot container and can be in...
Immersion cooling plant type 1.1MW-

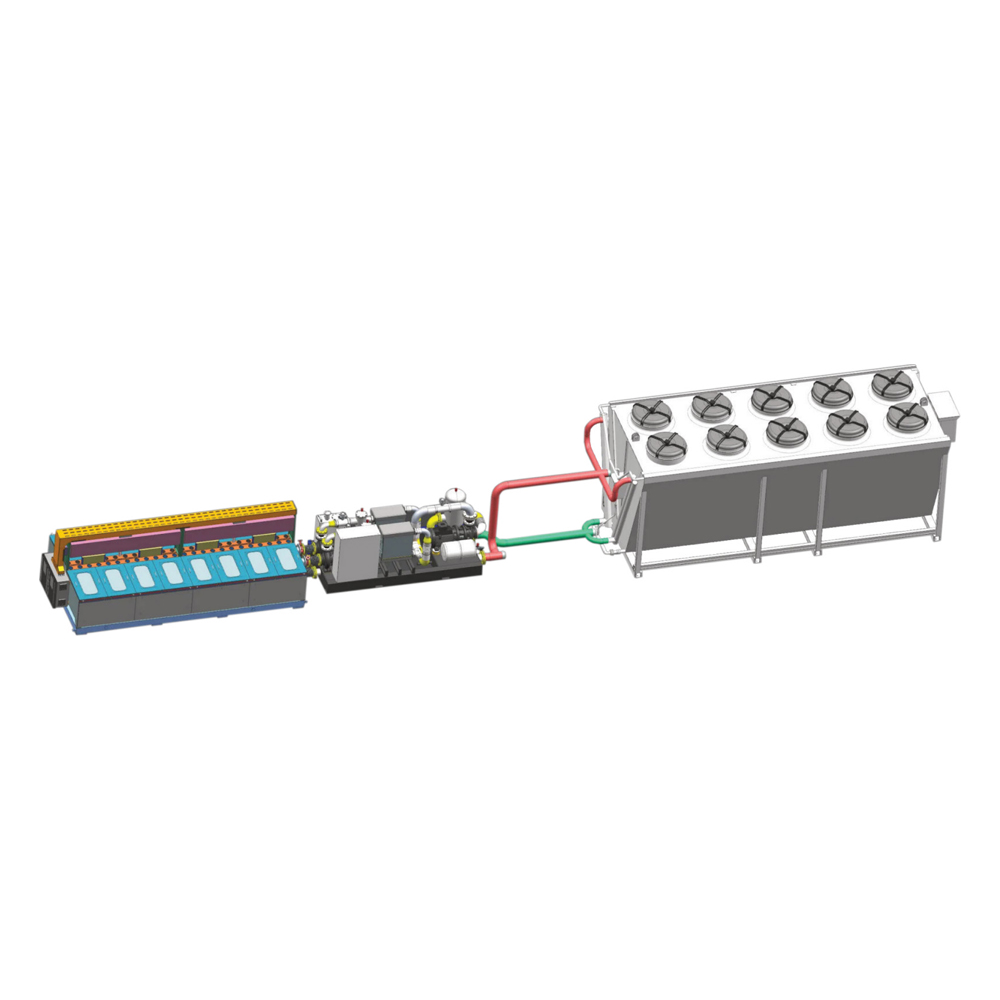

Immersion cooling plant type 1.1MW
The 1.1MW Immersion Cooling Plant is a high-capacity thermal cooling device that transfers intensive waste heat from large-scale high-power computing equipment (e.g., dense server groups, massive GPU clusters and full-load mining farms) to ambient ai...
Immersion cooling-plant type 1.0 MW-

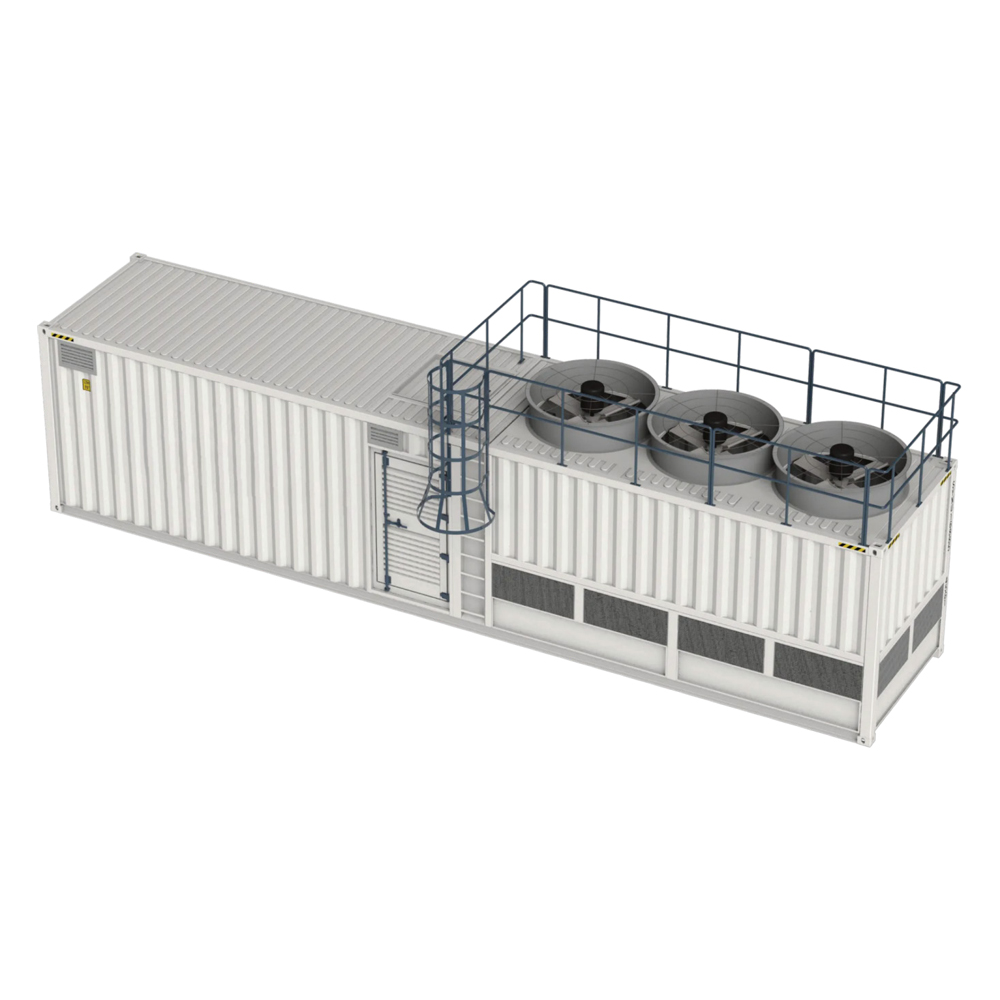

Immersion cooling-plant type 1.0 MW
